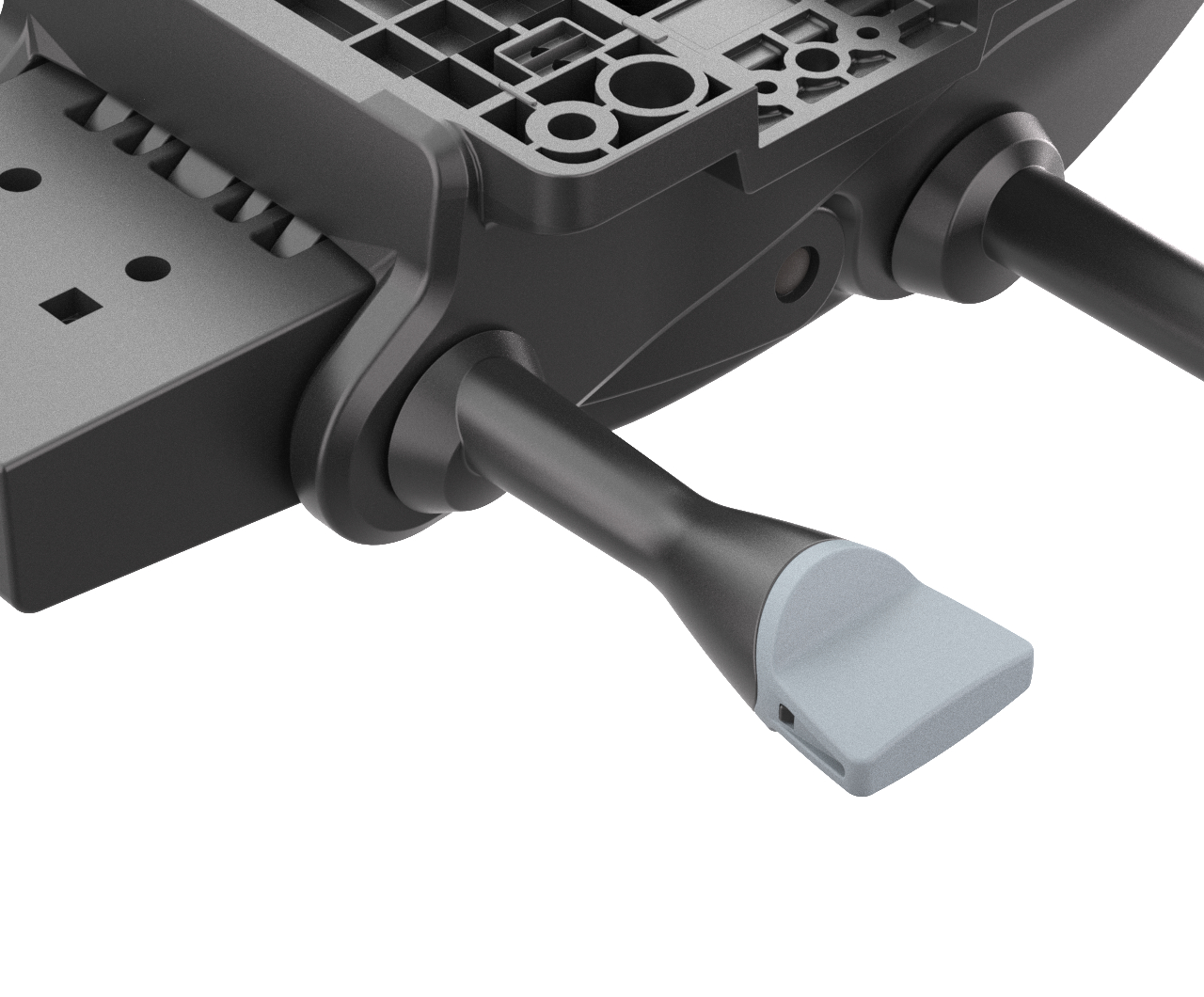

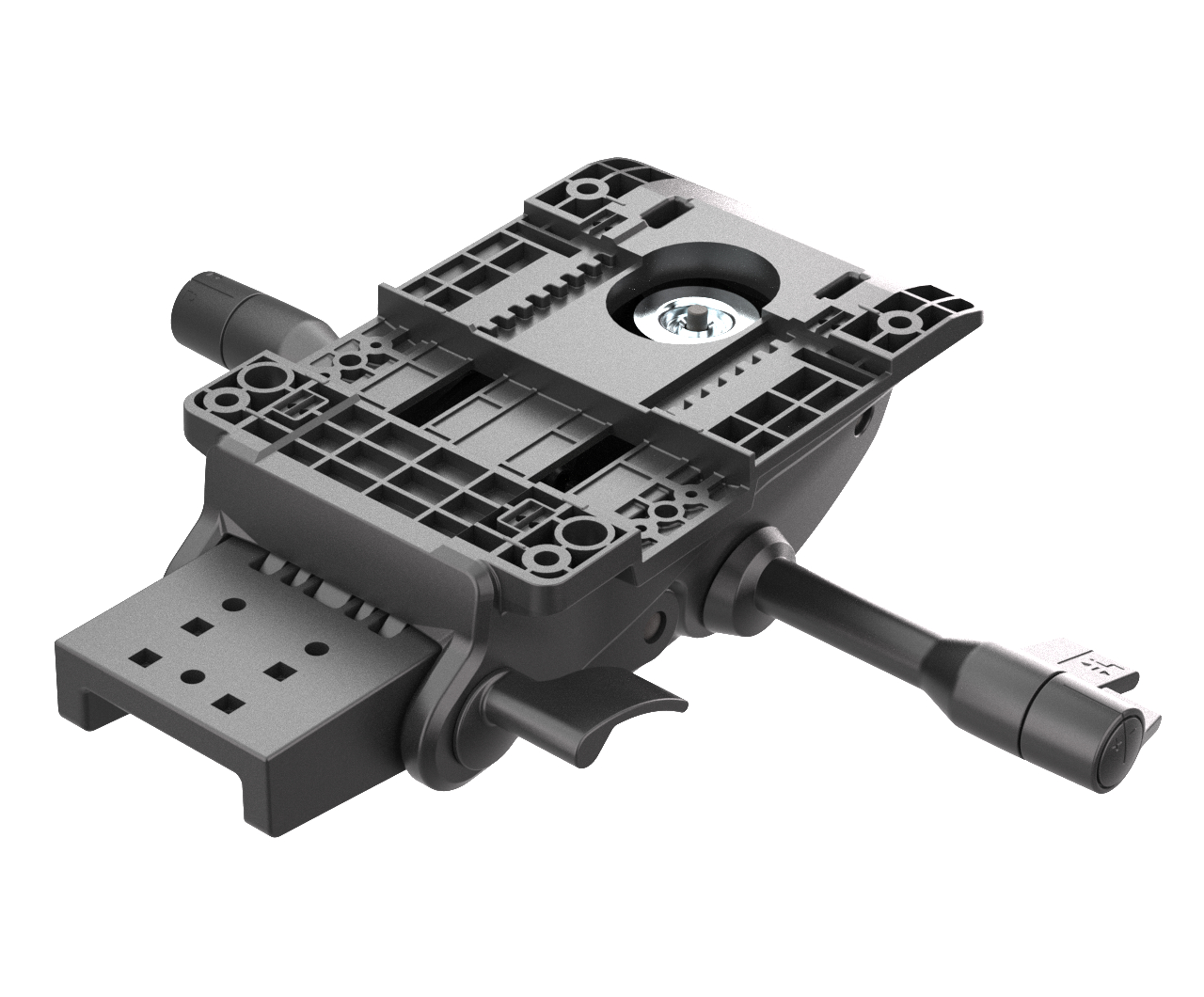

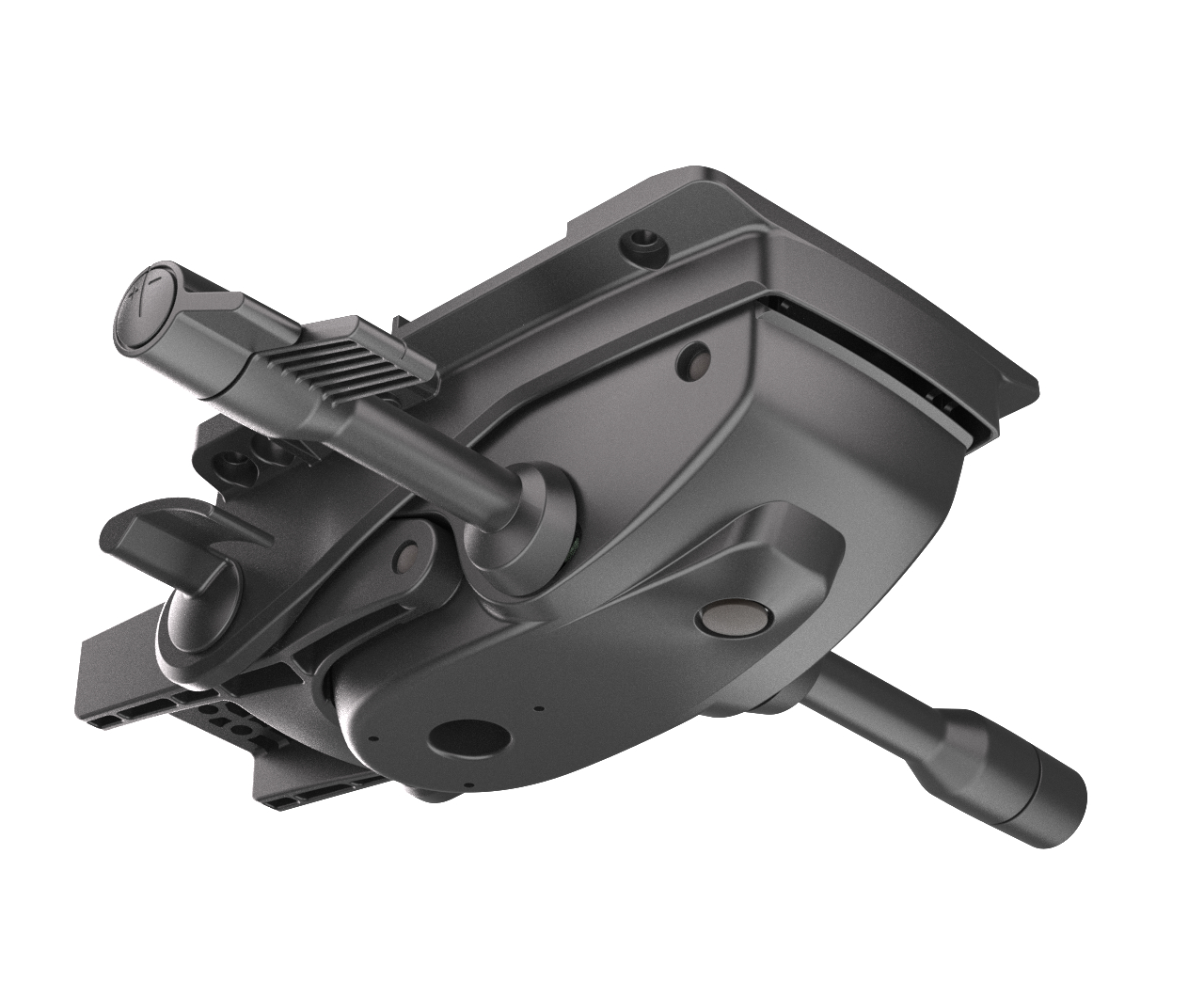

M984-01
SYNCHRON MECHANISM | FAST ADJUSTMENT |5 POS. LOCK | SEAT ANGLE ADJUSTABLE
Functions
Chair heigth adjustment
Tilting lock/unlock
Tilting intensity
Seat inclination adjustable Details
Technical features
MAIN
- Locking type: AS system
- Locking positions: 5
- Spring adjustment: Rapid
- Ready for armrest connection kit
- Mechanism Type: SYNCRO
BACKREST
- Anti-shock safety system
- Automatic stop search
- Backrest tilt angle: 24´┐¢
- Backrest connection: 3 holes 40x40 mm
- Backrest connection: 4 holes 25x40 mm
SEAT
- Work position: 0´┐¢
- Seat tilt angle: 10´┐¢
- Seat connection: 153x200 mm
- Additional forward adjustment on 3 positions of seat angle: 0´┐¢, 2.5´┐¢, 5´┐¢
- Adjustable seat angle: 3 pos.
STANDARD
- Compliant with standard: ANSI-BIFMA X5.1
- Compliant with standard: EN 1335-2 EN 1728
OPTIONS
- Limited angular stroke
- Alternative main spring for different chair size
