    834-01

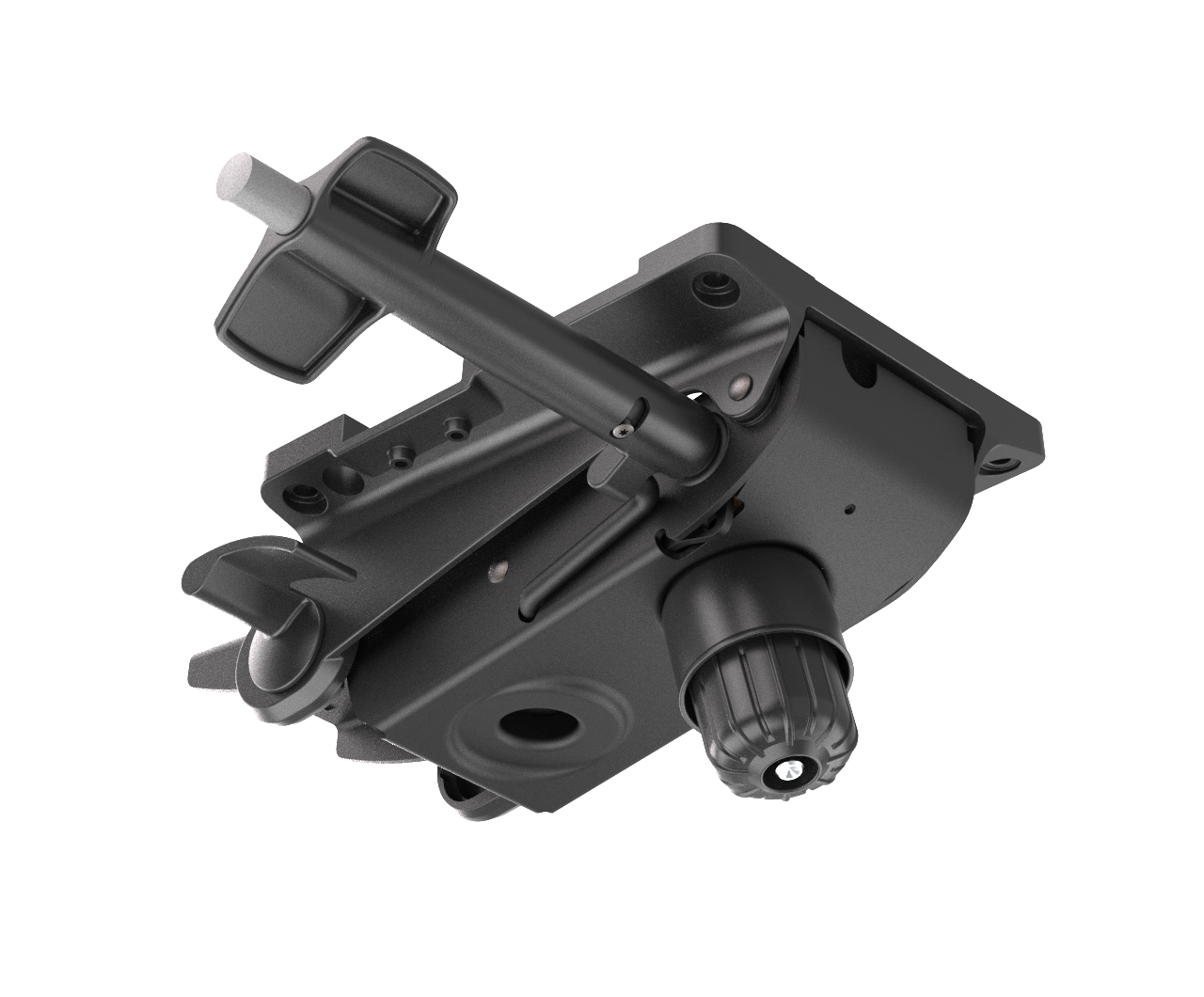

    SYNCHRON MECHANISM | 5 LOCK POS. | SEAT ANGLE ADJUSTABLE | STEEL STRUCTURE

    Functions
    Chair heigth adjustment
    Seat inclination adjustable
    Tilting intensity
    Tilting lock/unlock
    Technical features
    STANDARD
    • ANSI-BIFMA X5.1
    • EN 1335-2
    • EN 1728
    BACKREST
    • Backrest tilt angle: 21°
    • Automatic stop search
    • Anti-shock safety system
    • Backrest connection: 3 holes 40x40 mm
    • Backrest connection: 4 holes 25x40 mm
    SEAT
    • Work position: 0°
    • Seat tilt angle: 9°
    • Seat connection: 153x200 mm
    • Adjustable seat angle: 3 pos.
    • Additional forward adjustment on 3 positions of seat angle: 0°, 2.5°, 5°
    MAIN
    • Locking positions: 5
    • Spring adjustment: Standard
    • Locking type: AS system
    • Ready for armrest connection kit
    OPTIONS
    • Limited angular stroke
    • Alternative main spring for different chair size
