564-01

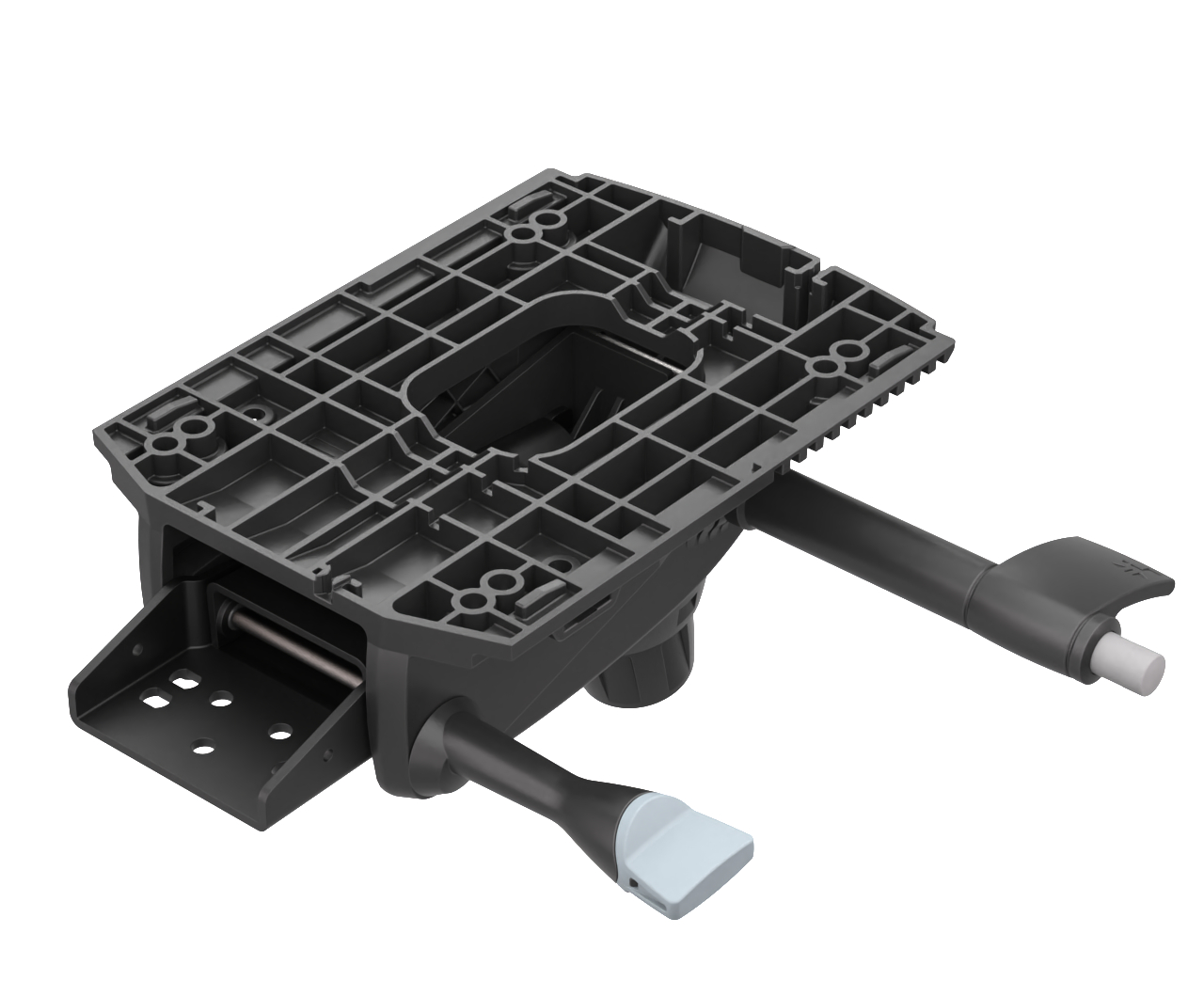

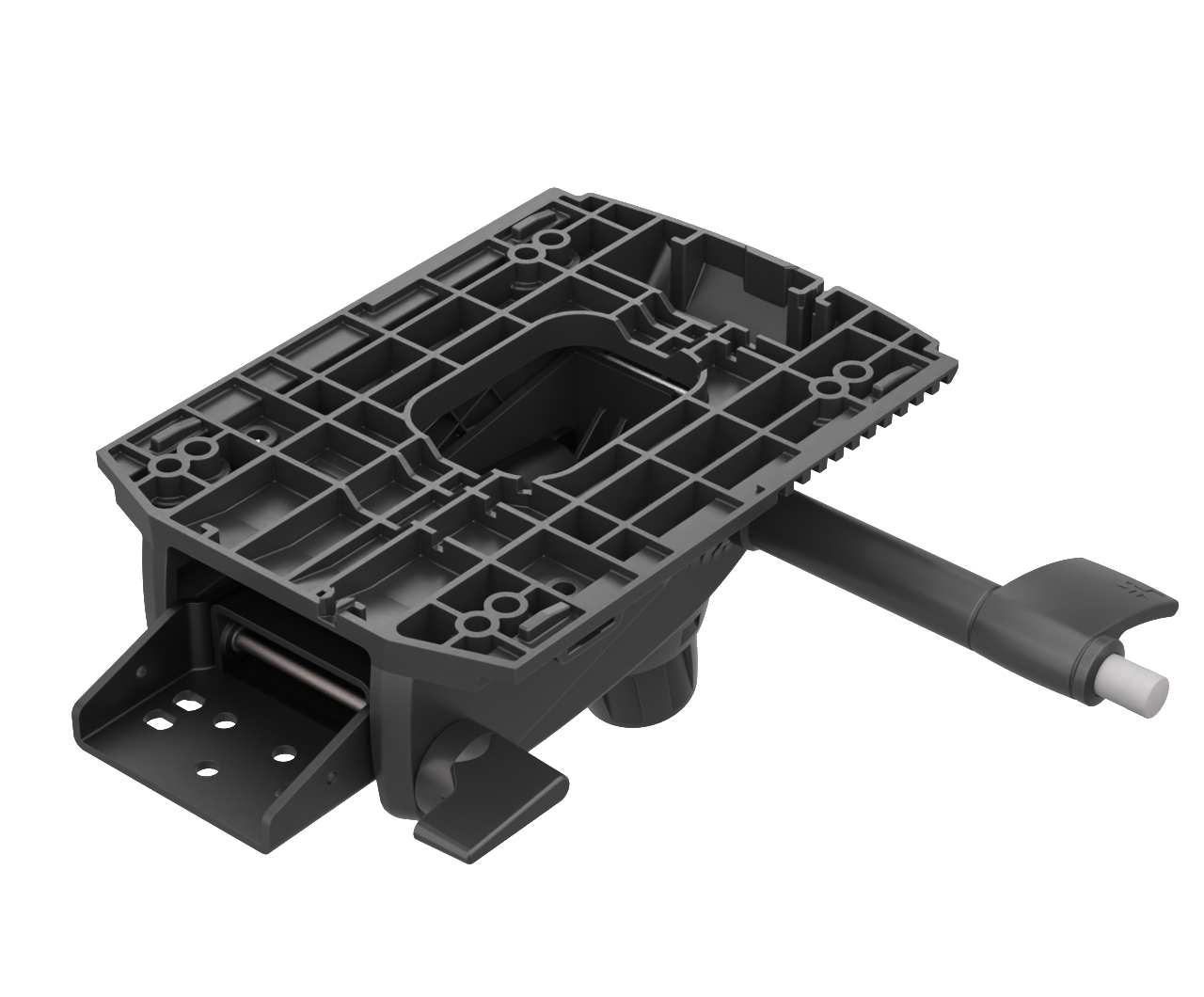

SYNCHRON MECHANISM | 5 LOCK POS. | SEAT ANGLE ADJUSTABLE | SEAT RAPID ASSEMBLY
Functions
Chair heigth adjustment
Tilting intensity
Tilting lock/unlock
Seat inclination adjustable Details
Technical features
MAIN
- Locking type: AS system
- Ready for armrest connection kit
- Rapid assembly system for IMARC seat with integrated slider
- Locking positions: 5
- Spring adjustment: Standard
BACKREST
- Anti-shock safety system
- Automatic stop search
- Backrest connection: 4 holes 15x67 mm
- Backrest connection: 3 holes 24x64-70 mm
- Backrest tilt angle: 20°
- Backrest connection: 3 holes 24x30 mm
SEAT
- Seat connection: 153x200 mm
- Seat connection: Rapid assembly system
- Additional forward adjustment on 3 positions of seat angle: 0°, 2.5°, 5°
- Adjustable seat angle: 3 pos.
- Work position: 0°
- Seat tilt angle: 9°
STANDARD
- EN 1335-2
- EN 1728
ACCESSORIES
- Backrest rapid connection kit
OPTIONS
- Different colors
- Different levers
